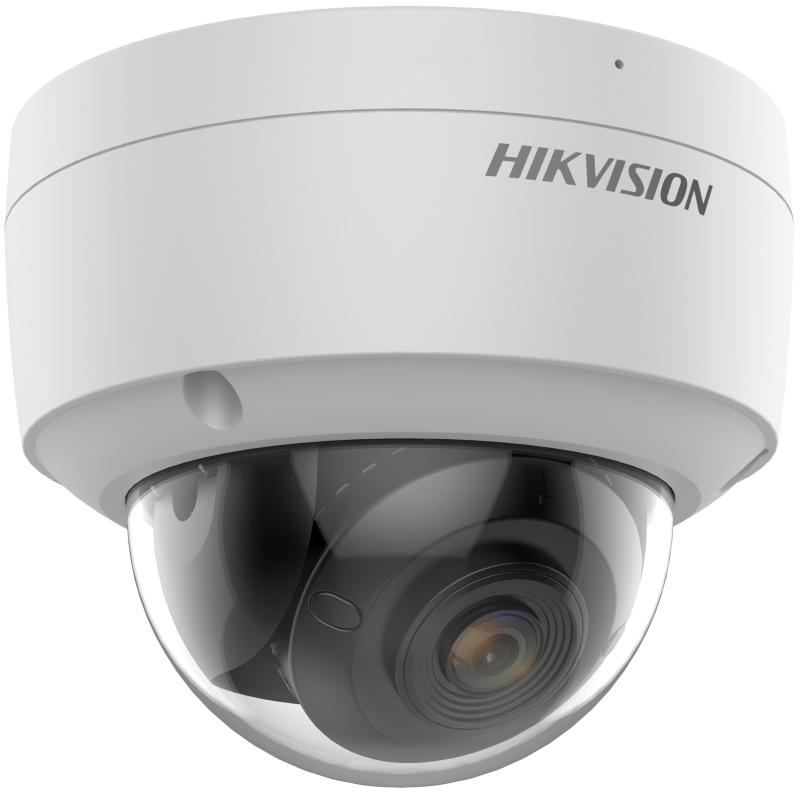

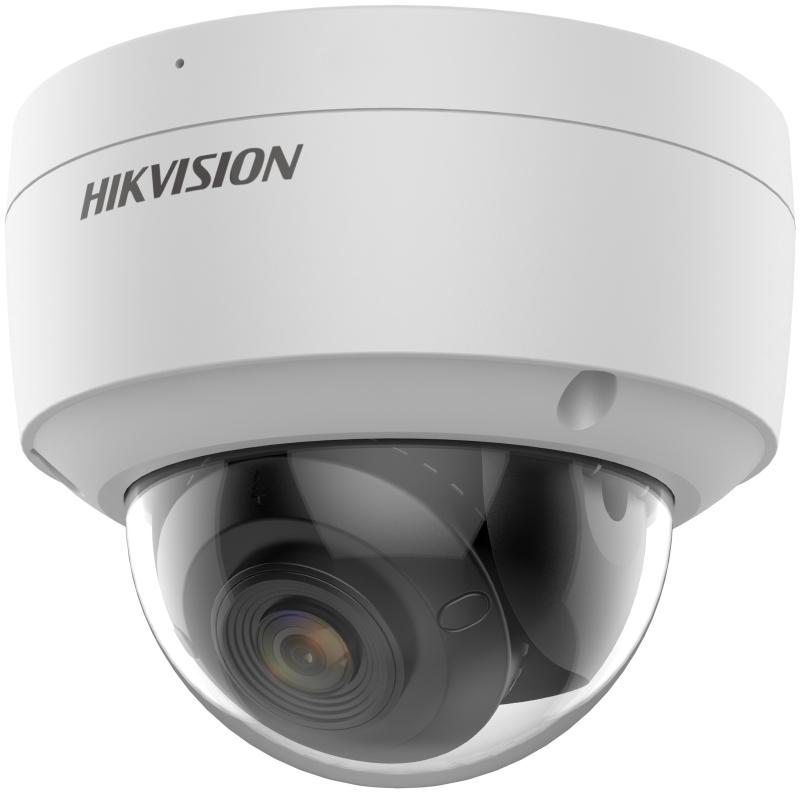

Hikvision DS-2CD2127G2(-SU)
2 MP ColorVu Fixed Dome Network Camera High quality imaging with 2 MP resolution Efficient H.265+ compression technology Clear imaging against strong back light due to 120 dB WDR technology 24/7 colorful imaging Focus on human and vehicle classification based on deep learning -SU: Built-in microphone for real-time audio security, Audio and alarm interface available Water and dust resistant (IP67) and vandal resistant (IK10)
- Açıklama
- İndirilebir Dosyalar
- Sipariş Formu
Kamera
Image Sensor1/2.8" Progressive Scan CMOS,Max. Resolution1920 × 1080
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), Shutter Time1/3 s to 1/100,000 s
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
Lens Mount M12, Iris TypeFixed, ApertureF1.0
DORI
2.8 mm: D: 46 m, O: 18 m, R: 9 m, I: 4 m,4 mm: D: 56 m, O: 22 m, R: 11 m, I: 5 m
Video Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+,Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile,Bit Rate ControlCBR/VBR, Scalable Video Coding (SVC)H.265 and H.264 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
Audio
Audio Compression-SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-SU: 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64 Kbps(AAC-LC)
Audio Sampling Rate-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-SU: Yes
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser, Day/Night SwitchDay, Night, Auto, Schedule, Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB, Image EnhancementBLC, HLC, 3D DNR
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone-SU: Yes
Audio
-SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound, Alarm-SU: 1 input, 1 output (TTL: max. 12 VDC, 30 mA), Reset KeyYes
Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
Linkage
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
-S model also supports: trigger alarm output, audible warning
Deep Learning Function
Face CaptureYes
General Power
12 VDC, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
DimensionØ121.4 × 100.1 mm (Ø4.8" × 3.9") Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6")
WeightApprox. 560 g (1.2 lb.) With Package WeightApprox. 810 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
