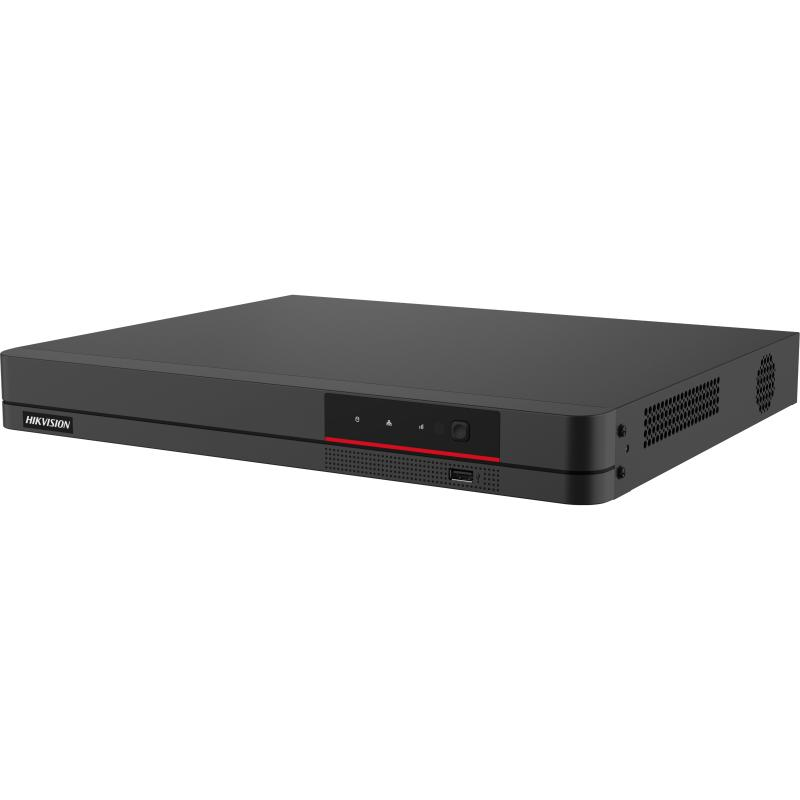

Hikvision DS-7616NI-K2/4G

Stok : Stokta Var Kategori : Hikvision güvenlik teknolojileri| akm grup, Hikvision nvr video kaydedici

16-ch 1U 4G NVR Up to 16-ch IP camera inputs Up to 160 Mbps incoming bandwidth and 80 Mbps outgoing bandwidth H.265+/H.265/H.264+/H.264 video compression Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity 4G wireless network Support network keep alive, data monitoring, used data real time display, data usage notification

Ürün Kodu : DS-7616NI-K2/4G Etiketler : Hikvision DS-7616NI-K2/4G

Açıklama
İndirilebir Dosyalar
Sipariş Formu

Motion Detection 2.0

Human/Vehicle Analysis4-ch

Video And Audio

IP Video Input16-ch Incoming Bandwidth160 Mbps Outgoing Bandwidth80 Mbps HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output ModeHDMI/VGA simultaneous output Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)

Decoding

Decoding FormatH.265/H.265+/H.264/H.264+ Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback16-ch Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2

Network

Remote Connection32 Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Wireless Parameter

SIM/UIM Card Slot1 micro SIM card slot, on rear panel SMA Antenna Interface 1 4G interface, antenna module cable length: 3 m 1 ANT interface for GPS antenna (GPS antenna is optional)

Wireless Standard

GSM/EDGE: 850/900/1800MHz WCDMA: B1/B5/B8 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41

Auxiliary Interface

SATA2 SATA interfaces CapacityUp to 8 TB capacity for each HDD USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

General

Power Supply12 VDC, 3.33 A Consumption≤ 15 W (without HDD) Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10 to 90 % Dimension (W × D × H)385 × 315 × 52 mm (15.2" × 12.4" × 2.0") Weight≤ 1 kg (without HDD, 2.2 lb.)
